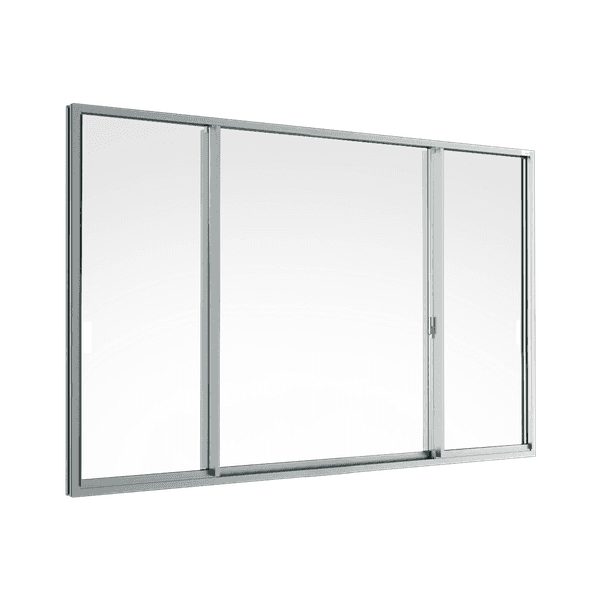

GRANTS
GRANTS, crafted for low-rise residences, transforms spaces with expansive glass panels, seamless lines, and refined aesthetics. Blending innovation with elegance, it frames homes with timeless design and open views.
SPECIFICATIONS
GRANTS
FRAME DEPTH | 101.6 mm |
HEIGHT OF SILL | 50 mm |
GLASS THICKNESS | Up to 31.52 mm |
COLOR
Natural White
Natural Silver
Shine Gray
Autumn Brown
Dusk Gray
Natural Black
PERFORMANCES
WIND PRESSURE
GENERAL | 500PA - 1200PA (JIS A 1515) |
FLAT RAIL SLIDING | 500PA - 1200PA (JIS A 1515) |
CORNER SLIDING | 500PA - 1200PA (JIS A 1515) |
WATER TIGHTNESS
GENERAL | W-3: 250PA (JIS A 1517) |
FLAT RAIL SLIDING | W-2: 150PA (JIS A 1517) |
CORNER SLIDING | W-2: 150PA (JIS A 1517) |
AIR TIGHTNESS
GENERAL | A-4: 2M{{sup}}3{{/sup}}/H.M{{sup}}2{{/sup}} (JIS A 1516) |
FLAT RAIL SLIDING | A-4: 2M{{sup}}3{{/sup}}/H.M{{sup}}2{{/sup}} (JIS A 1516) |
CORNER SLIDING | A-4: 2M{{sup}}3{{/sup}}/H.M{{sup}}2{{/sup}} (JIS A 1516) |
NOISE INSULATION
GENERAL | T-1: 25DB (JIS A 1416) |
FLAT RAIL SLIDING | T-1: 25DB (JIS A 1416) |
CORNER SLIDING | T-1: 25DB (JIS A 1416) |
