GIESTA

FRAME DEPTH

101.6 mm

HEIGHT OF SILL

Out-swing 50 mm
In-swing outside 30 / inside 14 mm

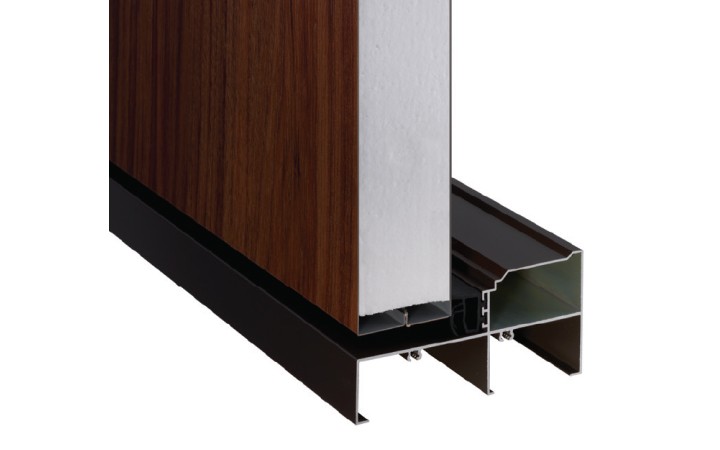

DOOR FRAME

Top and side frame:
- Wood pattern type: wood pattern resin sheet,
wrapping on aluminum profile with synthetic rubber
- Painted type: anodized aluminum profile

Sill: Anodized aluminum profile

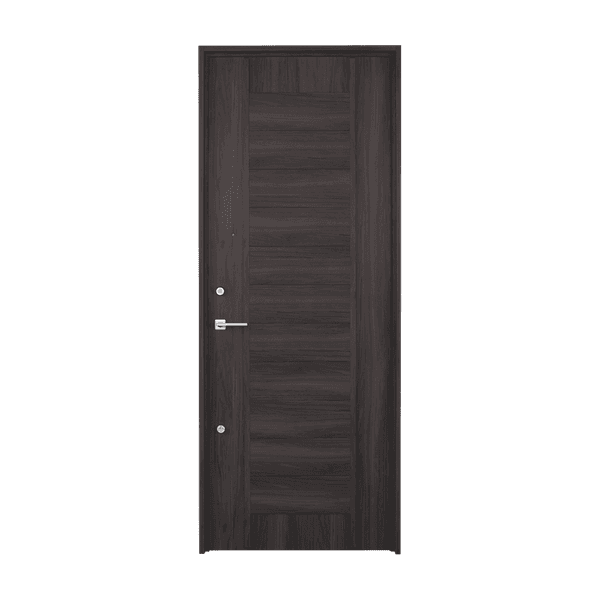

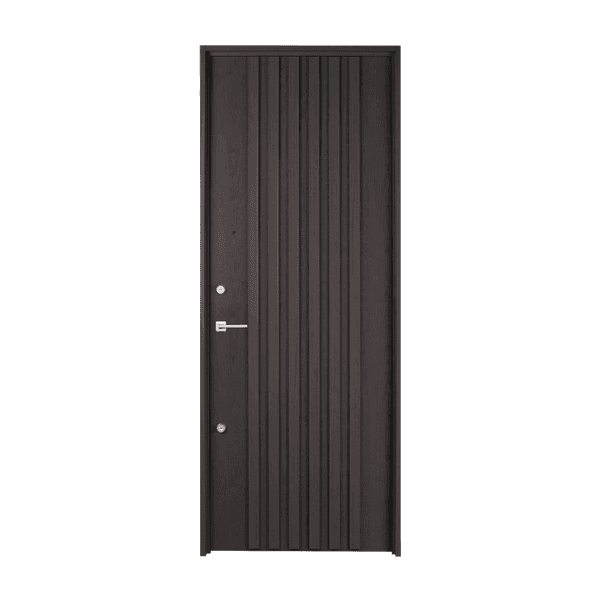

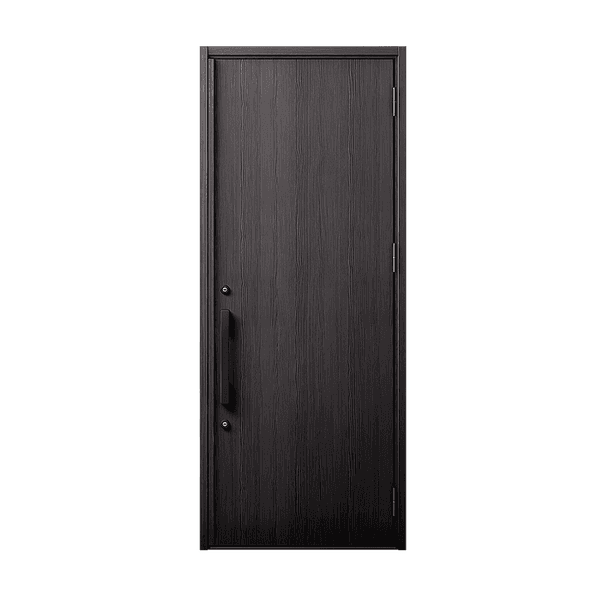

DOOR PANEL

External sheet:
- Wood pattern type: (External) resin laminated
sheet / (Internal) anti-rust epoxy coating
- Polystyrene (EPS foam)

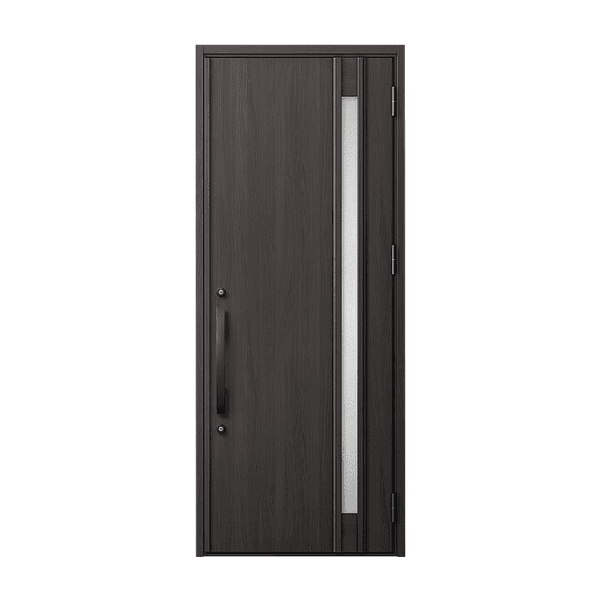

Insulating glass thickness 23 mm
(cleared 3 + air gap 16 + patterned glass 4)
